Petzl Micro Traxion

R 1,896.00

MICRO TRAXION

High-efficiency, lightweight progress-capture pulley

MICRO TRAXION is a compact and lightweight progress-capture pulley (85 g) designed for crevasse rescue, hauling, and self-rescue, and for use as an emergency ascender. The cam can be locked in the open position so the device can be used as a simple pulley. Sealed ball bearings provide excellent efficiency (91 %).

Detailed description

Description

Versatile:
- Designed for crevasse rescue, hauling, self-rescue, and for use as an emergency ascender

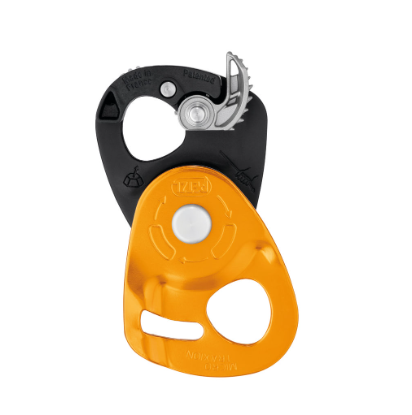

- May be used as a simple pulley by locking the cam in the raised position
Very light and compact:
- Only 85 g

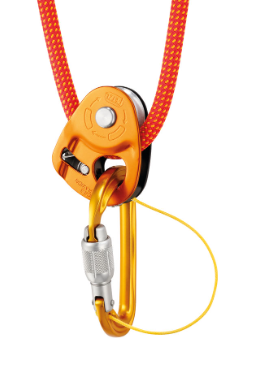

- Hole allows an Sm’D carabiner to be connected to the pulley with an cord, making the device loss-proof
High efficiency:
- Sealed ball bearings provide excellent efficiency (91 %)
- Works even on frozen or muddy ropes
- For use on 7 to 11 mm diameter ropes
- Rope installation diagrams are engraved inside the pulley

Specifications

Weight: 85 g
Certification(s): CE EN 567, UIAA
Min. rope diameter: 7 mm
Max. rope diameter: 11 mm
Sheave type: Sealed ball bearings
Sheave diameter: 27 mm
Working load: 2 x 2.5 = 5 kN
Breaking strength: 2 x 7,5 = 15 kN
Working load as progress capture pulley: 2,5 kN
Breaking strength as progress capture pulley: 4 kN
Efficiency: 91 %
Compatible with the PUR’LINE 6 mm cord only for hauling a pack (more information in the Instructions for Use at www.petzl.com)
Compatible with the RAD LINE 6 mm cord (more information in the Instructions for Use at www.petzl.com)

References

References	P53
Guarantee	3 years
Inner Pack Count	1

Technical information

Inspection

PPE inspection procedure

Download the PDF - 3.80 MB

PPE checklist

Download the PDF - 0.19 MB
