New

PETP45

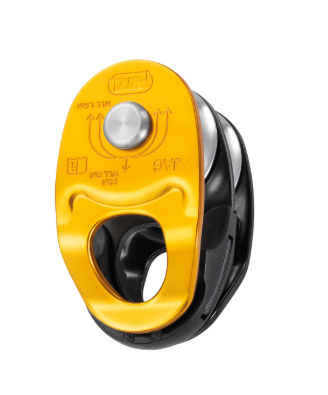

Petzl Jag Pulley

R 1,466.00

JAG

High-efficiency double pulley

The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

Detailed description

Description

Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
Sheaves mounted on sealed ball bearings for excellent efficiency

Specifications

Weight: 120 g
Certification(s): CE EN 12278, UKCA, NFPA 2500 Technical Use
Material(s): aluminum, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 11 mm
Sheave type: sealed ball bearings
Sheave diameter: 25 mm
Maximum working load: 2 × 1,5 kN × 2 = 6 kN
Breaking strength: 2 × 4 kN × 2 = 16 kN
Efficiency: 91 %

References

References	P45
Guarantee	3 years
Inner Pack Count	1

Technical information

Technical notice

Download the PDF : technical-notice-JAG-SYSTEM-1 - 9.60 MB

Declaration Of Conformity

Tips for maintaining your equipment

Download the PDF - 2.72 MB

FAQ

See all technical content

Inspection

PPE inspection procedure

Download the PDF - 1.09 MB

PPE checklist

Download the PDF - 0.20 MB
