Petzl Coeur Stainless Hangers Box of 20pc

R 1,158.00

COEUR BOLT STAINLESS

High quality stainless steel anchor for typical exterior use (pack of 20)

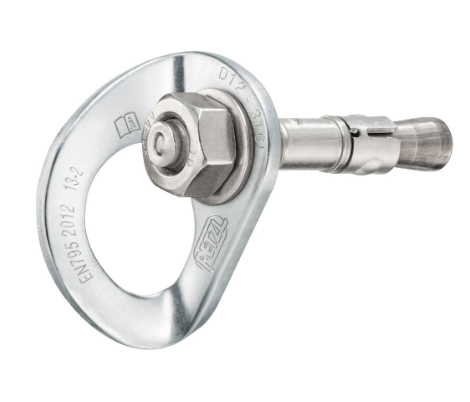

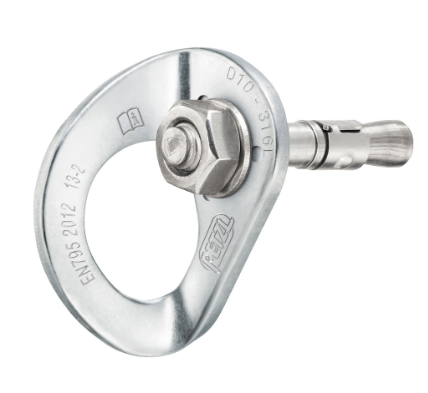

The COEUR BOLT STAINLESS is a high-quality stainless steel anchor made up of a COEUR STAINLESS hanger, a bolt, and a nut. It is designed for use in typical outdoor environments. It is available in 10 and 12 mm diameters.

Detailed description

Description

316L stainless steel assembly that offers excellent resistance to corrosion in typical exterior environments, made up of a COEUR STAINLESS hanger, a bolt, and a nut

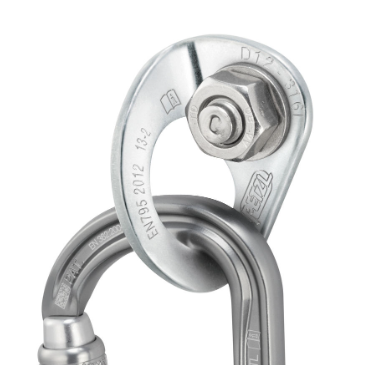

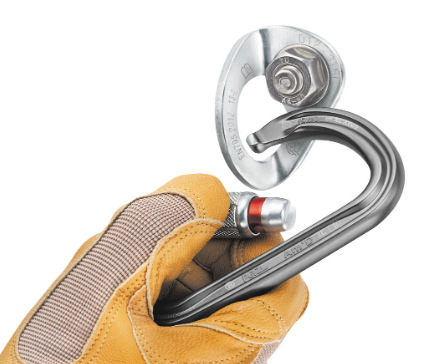

Easy to clip:
- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
Available in two bolt sizes (10 or 12 mm)

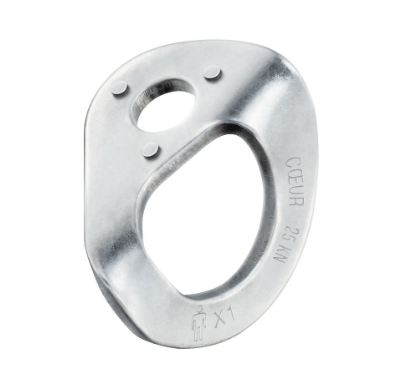

COEUR STAINLESS hangers, available separately:
- for 10 mm diameter bolt (P36AS 10)
- for 12 mm diameter bolt (P36AS 12)

Note: Items sold in packs are not marked for individual resale.

Specifications

Material(s): 316L stainless steel
Certification(s): EN 959

References

References	P36BS 10	P36BS 12
Diameter	10 mm	12 mm
Weight	110 g	135 g
Drilling diameter	10 mm	12 mm
Total bolt length	70 mm	85 mm
Shear strength in 50 MPa concrete	25 kN	25 kN
Pull-out strength in concrete 50 MPa	15 kN	18 kN
Guarantee	3 years	3 years
Inner Pack Count	1	1
